ANKER CHARGERS

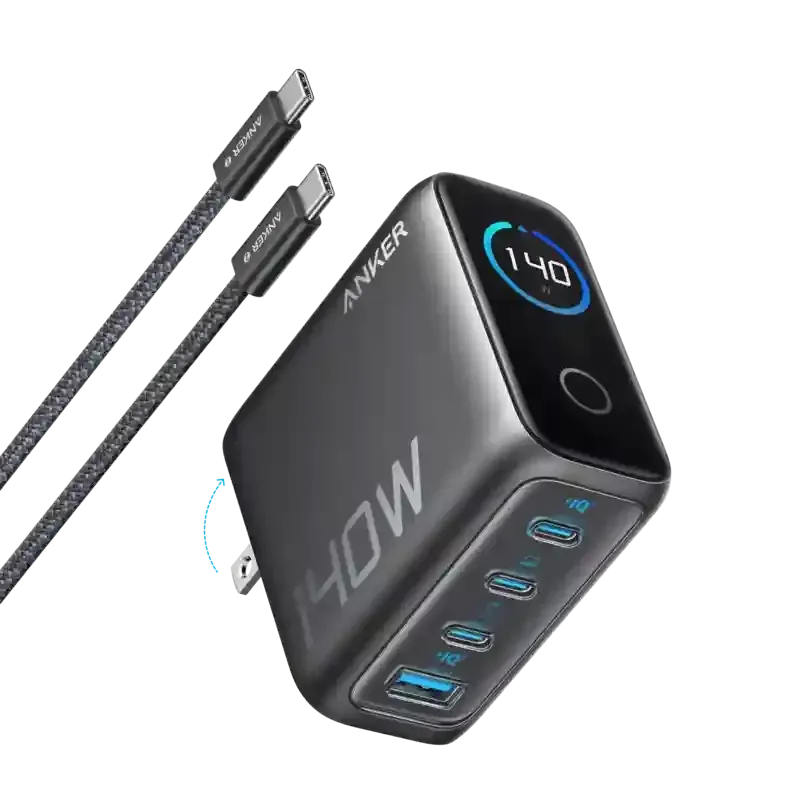

Anker Zolo 140W 4-Port PD 3.1 Fast Charger (B2697)
Power your everyday devices with the Anker Zolo 140W Charger (B2697), a high-output multi-port charger designed for compatible laptops, smartphones, tablets, and accessories. With up to 140W maximum output, USB Power Delivery 3.1 support, three USB-C ports, and one USB-A port, it provides a versatile charging solution for your desk, home, office, or travel bag.
The charger supports high-power charging through either of its two primary USB-C ports when used individually. Its multi-port power distribution lets you connect several devices at once, while the intelligent temperature-control system helps manage heat during operation. A USB-C cable is included according to the product name supplied; check the package contents to confirm the exact cable specification.
Key Features of Anker Zolo 140W Charger
140W Max
High-Power Charging
Power compatible high-wattage USB-C devices.
PD 3.1
USB Power Delivery
Supports high-power charging on compatible USB-C devices.
4 Ports
Multi-Device Charging
Three USB-C ports and one USB-A port.
28V / 5A
High-Power USB-C Output
Up to 140W from USB-C1 or USB-C2 individually, as specified.
Temperature Control
Thermal Protection
Designed to reduce output when extended high-temperature conditions occur.
Compact Design
Desk and Travel Use
A compact charger for compatible devices at home, work, or while travelling.
140W Maximum Output for Compatible Laptops
The Anker Zolo B2697 can deliver up to 140W from USB-C1 or USB-C2 when used individually, according to the supplied specifications. This high output makes it suitable for compatible high-power USB-C laptops and other supported devices. The actual charging speed depends on the device's charging requirements, USB Power Delivery support, cable rating, battery level, and operating temperature.
An E-Marker USB-C cable is required to achieve charging speeds above 100W. Use a cable rated for the required power and verify your laptop's supported charging profile before purchase.
USB Power Delivery 3.1 Support
USB Power Delivery 3.1 enables compatible devices to negotiate supported charging voltage and current. The supplied USB-C1 and USB-C2 specifications include a 28V/5A output profile, allowing up to 140W from either port when used alone. Devices that do not support the same charging profile will draw power according to their own requirements.
Four Ports for Multiple Devices
With three USB-C ports and one USB-A port, the Anker Zolo 140W Charger offers flexible connections for laptops, smartphones, tablets, earbuds, and other compatible USB-powered accessories. This can help reduce the number of separate wall chargers needed in your workspace.
Total output is shared according to the active ports and the charger's power-distribution rules. The maximum single-port output should not be interpreted as the power available to every device simultaneously.
Flexible Multi-Port Power Distribution
According to the supplied specifications, the charger distributes power across its ports in several configurations:
- Two ports: USB-C1 + USB-C2: 70W + 70W.
- Two ports: USB-C1 or USB-C2 + USB-C3: 100W + 40W.
- Two ports: USB-C1 or USB-C2 + USB-A1: 100W + 33W.
- Three ports: USB-C1 + USB-C2 + USB-C3: 65W + 45W + 30W.
- Three-port combination: USB-C1 or USB-C2 with USB-C3 and USB-A1: 100W + 24W combined for USB-C3 and USB-A1.
Refer to the complete output table below for the configurations supplied for this model. Actual power can vary with connected devices and operating conditions.
Intelligent Temperature Management
The charger includes over-temperature protection. During high-load operation, it may reduce its output automatically if elevated temperatures persist. This is a protective response intended to help prevent damage; charging power can therefore fluctuate during extended use.
High-power chargers can become warm during normal operation. Keep the charger in a well-ventilated area and avoid covering it or placing it near heat-sensitive materials.
Important Compatibility Notes
- Dell laptops: The supplied notes state that charging is limited to up to 60W for Dell laptops because of Dell-specific charging protocols. Some laptops requiring more than 100W may display a slow-charging warning.
- USB-C cable: An E-Marker cable is required for charging above 100W.
- Unused cable: The supplied instructions recommend unplugging the cable when it is not in use to avoid limiting the maximum output power of other ports.
- MacBook charging indicator: The supplied notes state that a plug symbol may temporarily appear in the battery icon when using a third-party charger; charging may resume normally after about one minute.
Anker Zolo 140W Charger Specifications
| Brand |
Anker |
| Model Number |
B2697 |
| Product Name |
Anker Charger (140W, 4-Port, PD 3.1) with USB-C Cable |
| Maximum Total Output |
140W |
| Input |
100–240V~, 50/60Hz, 2.6A maximum |
| USB-C Ports |
3 × USB-C |
| USB-A Ports |
1 × USB-A |
| USB-C1 Output (Single Port) |
9V/3A, 15V/3A, 20V/5A, 28V/5A; 140W maximum |
| USB-C2 Output (Single Port) |
9V/3A, 15V/3A, 20V/5A, 28V/5A; 140W maximum |
| USB-C3 Output (Single Port) |
5V/3A, 9V/3A, 15V/2.65A, 20V/2A; 40W maximum |
| USB-A1 Output (Single Port) |
5V/3A, 9V/2A, 12V/1.5A, 10V/2.25A, 11V/3A; 33W maximum |
| Two-Port Output |
C1 + C2: 70W + 70W; C1/C2 + C3: 100W + 40W; C1/C2 + A1: 100W + 33W; C3 + A1: 24W combined |
| Three-Port Output |
C1 + C2 + C3: 65W + 45W + 30W; C1 + C2 + A1: 65W + 45W + 30W; C1/C2 + (C3 + A1): 100W + 24W combined |
| USB-C PPS |
USB-C1 or USB-C2: 4.5–20V/5A, up to 100W, according to supplied specifications |
| Dimensions |
69 × 69 × 36mm |
| Charger Weight |
275g |
| Weight with Cable/Package |
395g, as listed in the supplied weight field; confirm what is included in this measurement |
| Included Cable |
USB-C cable; verify exact cable rating and package contents |
| Safety Feature |
Over-temperature protection |
Who Should Buy the Anker Zolo 140W Charger?
- Users with compatible high-power USB-C laptops.
- People who want to charge a laptop, phone, tablet, and accessories from one charger.
- Professionals and students who need a multi-port desktop or travel charging solution.
- Users who need USB-C PD 3.1 support and up to 140W single-port output.
- Anyone looking to reduce the number of separate chargers carried daily.
Frequently Asked Questions (FAQ)
1. What is the maximum output of the Anker Zolo B2697?
The charger supports up to 140W from USB-C1 or USB-C2 when either port is used individually, according to the supplied specifications. Total power is distributed across ports when multiple devices are connected.
2. How many devices can it charge simultaneously?
It has four ports: three USB-C and one USB-A. The number of devices that can charge at the same time depends on the available ports, and the power available to each device depends on the selected port combination.
3. Can it charge a laptop?
Yes, it can charge compatible USB-C laptops that support the charger's available output profiles. Check the laptop's charging requirements and use a suitably rated cable. The supplied notes specify up to 60W for Dell laptops because of Dell-specific charging protocols.
4. Is an E-Marker cable required?
Yes. According to the supplied product notes, an E-Marker USB-C cable is required to achieve charging speeds above 100W.
5. Is it normal for the charger to get warm?
High-power chargers can become warm during normal operation, particularly under heavy load. The supplied specifications mention over-temperature protection, which can reduce output if high temperatures persist. Keep the charger well ventilated.
6. Why might the charging wattage be lower than expected?
Charging power changes according to battery level, device temperature, screen activity, charging protocol, cable capability, and the number of active ports. The charger may also reduce output during extended high-temperature conditions.
Buy Anker Zolo 140W Charger from ChittagongGadget.com
Looking for a high-power charger for your compatible laptop, phone, tablet, and accessories? The Anker Zolo 140W B2697 combines four charging ports with flexible power distribution in a compact design.
Visit ChittagongGadget.com to check the latest price, stock availability, and confirmed warranty details before ordering.
Note: Specifications are based on the supplied product information. Confirm the exact model, output distribution, cable rating, package contents, and warranty with the supplier before publication. Charging speed varies by device and operating conditions.
